| Parameter | TP 065 | TP 092 | TP 116 | TP 130 | TP 195 | TP 260 | TP 360 |
|---|---|---|---|---|---|---|---|
| Max. capacity [m³/h] | 3 | 10 | 20 | 30 | 60 | 120 | 250 |
| Design pressure [bar] | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Vacuum [bar] | - 0.92 | - 0.92 | - 0.92 | - 0.92 | - 0.92 | - 0.92 | - 0.92 |
| Rotational speed [RPM] max | 1,000 | 1,000 | 1,000 | 1,000 | 600 | 500 | 300 |
| Displacement [l] per revolution | 0.06 | 0.18 | 0.33 | 0.50 | 1.7 | 4.00 | 10.83 |
| Port size | 2’’ / BSP | DN65 / PN16 | DN100 / PN16 | DN100 / PN16 | DN150 / PN16 | DN200 / PN16 | DN250 / PN16 |
| Weight [kg] | 25 | 33 | 64 | 65 | 159 | 315 | 520 |

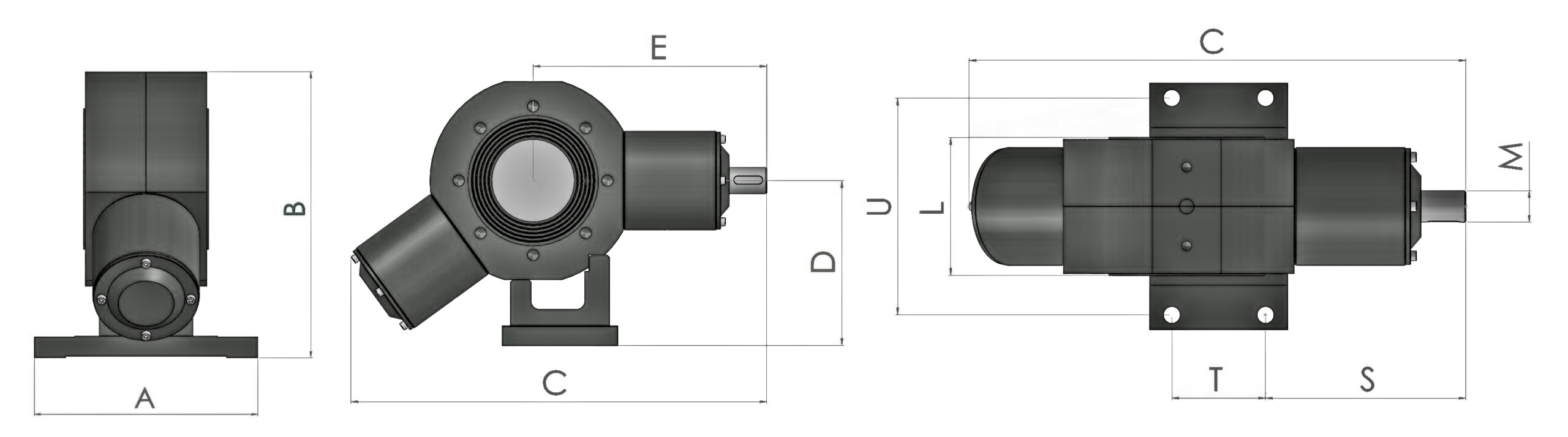

| Dimensions | TP 065 | TP 092 | TP 116 | TP 130 | TP 195 | TP 260 | TP 360 |
|---|---|---|---|---|---|---|---|
| A [mm] | 175 | 175 | 250 | 250 | 250 | 390 | 368 |
| B [mm] - Height | 220 | 248 | 320 | 320 | 426 | 517 | 625 |
| C [mm] - Length | 383 | 426 | 512 | 512 | 712 | 931 | 1,113 |
| D [mm] - Port/shaft centre height | 140 | 158 | 200 | 200 | 265 | 327 | 385 |
| E [mm] | 221 | 242.5 | 288 | 288 | 394 | 530 | 631.5 |
| L [mm] - Width | 100 | 106 | 140 | 140 | 200 | 270 | 368 |
| M [mm] | 22 | 28 | 32 | 32 | 40 | 60 | 75 |
| S [mm] | 166 | 184 | 208 | 208 | 300 | 423 | 493 |
| T [mm] | 65 | 65 | 95 | 95 | 120 | 165 | 242 |
| U [mm] | 150 | 150 | 220 | 220 | 220 | 340 | 300 |
